296DC Overview

Dual Console

296DC

The new 296DC brings you a smoother ride, shallower draft, and greater stability even in rough seas. And, while it’s built for comfort, it delivers plenty of speed. New features include a lower profile hardtop & frame, improved deck spacing, comfortable aft-facing softback seats with safety handrails, a 25-gallon livewell located in the port seat box and a 125-quart fish box located in the starboard seat box, updated dash and switch panel, USB outlets, and courtesy lighting in the bow. No matter what your watersports pleasure, this boat will deliver and then some.

HIGHLIGHTS

296DC Spacious

Most spacious dual console in its class

296Dc High Performance Hull

High-performing hull

296DC Stable Ride

Swift and stable ride

SPECIFICATIONS

Length: 29ʹ 1ʺ
Beam: 9ʹ 6ʺ
Draft: 15ʺ
Freeboard Aft: 27″
Transom Height: 25″
Dry Weight w/ Power (approx): 8,900 lbs
Max HP Rating: 600 HP (2 x 300 HP)
Fuel Capacity: 233 gal (2 x 116.5 gal)
Livewell Capacity: 25 gal
Freshwater Capacity: 33 gal
Wastewater Capacity: 15 gal
Trailering Height*: 10ʹ 6ʺ
Bridge Clearance*: 8ʹ 10ʺ
Cockpit Length: 65ʺ
Typical Cruise: 20.8 mph / 1.5mpg
Typical WOT: 53.3 mph / 1.0 mpg
Passenger Capacity: 12

* Preliminary estimate - includes max power and typical options
** Measured keel to top of fiberglass hardtop with no outriggers or electronics installed (not including trailer itself)

296DC Overhead

Molded-in bow pulpit with roller and cleats

Pro Series free-fall windlass with 33’ line, 15’ chain, 22lb anchor, and foot switches

Anchor locker with 2 hatches and raw water washdown

Bow seating w/ cushioned backs for 6 adults

Forward insulated 225 qt. fish box on starboard side w/ overboard drain

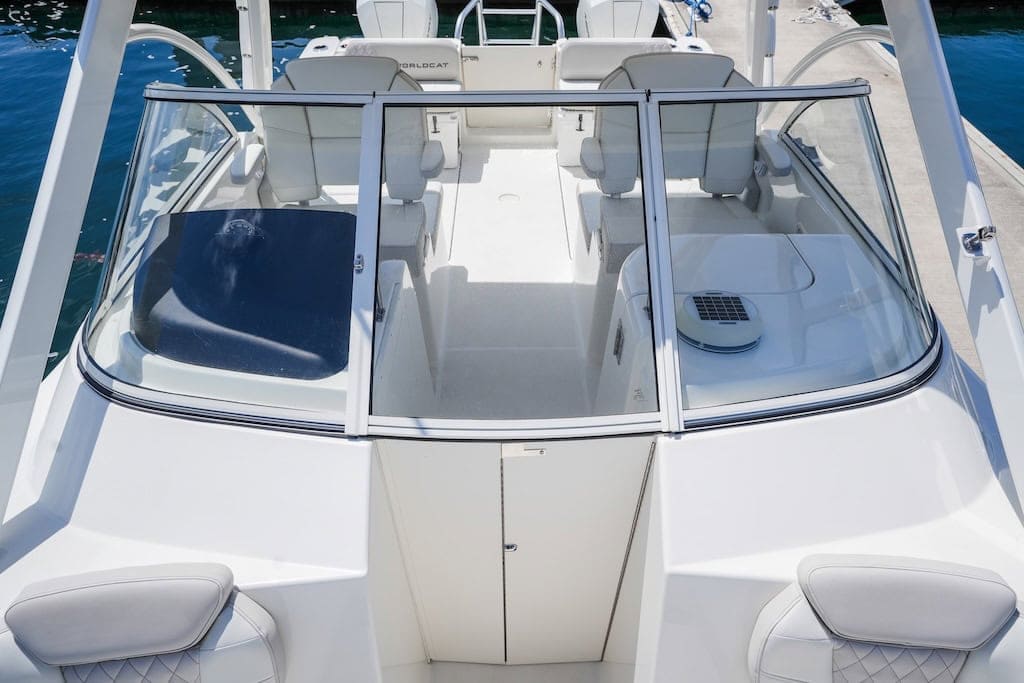

3 piece walk-through windshield

Fiberglass top w/ surfboard edge and powdercoated frame, overhead lights, and spreader lights

Ergonomic dash layout capable of 12” screen

Head / changing room w/ 23” wide access door, standing headroom, and marine head w/ a 15 gal. holding tank and overboard discharge

Lockable dry storage compartment with rod racks for 6 rods accessible from the head (port box)

Helm and passenger dual custom seats w/ nearby recessed stainless steel cup holders

Starboard seatbox with 150 qt. insulated fishbox / cooler w/ raw water washdown

Port seatbox houses 25. gal insulated livewell w/ 1100 gph magnetic drive pump, overboard drain, and a clear lid

Twin aft-facing seats on seatboxes w/ flip-down footrests

6 gunwale mounted rod holders

Dual aft fold-down seats with backrest cushions

Walk-through transom w/ heavy-duty door, bait prep, and tool storage

Fresh water transom shower w/ 35 gal. water tank

Large swim platform and user-friendly
On-Ramp swim ladder
