Center Console


Coming Soon!


Length: 39’ 8”
Beam: 12’ 8”
Fuel Capacity: 612 gal
Dry Weight: 14,500 lbs
Draft: 21”
Max HP: 1200 HP

400CC-X Specs



  • Through hull anchor system w/ stainless steel windlass, fresh and raw wash down
  • Three forward hatches with fiberglass liners: port storage and wash down connections, center access to anchor roller, starboard access to windlass and rode. Port and starboard boxes with direct overboard drains into tunnel
  • Wrap-around forward bow seating with large dry storage boxes under port and starboard, power-actuated pop-up backrest, and recessed compartments with speakers, 12V DC ports / USB charging stations, stainless steel cup holders, and dry storage box
  • Bow table between bow seating folds forward to form step to bow
  • Gunwale cup/rod holders
  • Recessed stainless steel grab rail around entire bow area from console forward
  • In-deck 1000-quart insulated fishboxes that drain overboard (port and starboard)
  • In-deck dry storage boxes (port and starboard) behind fishboxes (optional ice maker starboard & optional generator port)
  • Under gunwale lockable rod storage for (3) offshore rods (port and starboard)
  • Forward-facing triple seat on front of console with power actuated door opening to console head interior


  • Console head with 54” headroom and power-opening forward door
  • Overhead windowlight and power ventilator
  • Sink, mirror, teak flooring, and Corian vanity with storage, lighting, and 120V outlets
  • Fresh water head with overboard discharge
  • Air conditioning vent
  • Molded fiberglass interior finish
  • Side console storage compartments for six rods with fresh water wash mister


  • Integrated painted aluminum frame system with flat glass forward windshield, side windows, power forward vent, and manual side vents
  • Large fiberglass hardtop aft to the mezzanine seat. Integrated with sun roof, upper switch panel, LED spreader lights (3), tri-colored (red, blue, white) LED recessed lights (4), outrigger plates, ladder/ access hatch to optional upper station, rocket launchers, and electric aft cockpit shade
  • Large pantograph windshield wiper with spritzer
  • Stitched console dash brow
  • Wrap-around black plexi instrument panel for (3) 17” screens and push switch panel
  • Center mounted stainless steel steering wheel and wrap around instrument cluster
  • Fly-by-wire Yamaha Helm Master Controls for twin or quad engine installations
  • Storage for (3) phones / iPad with charging station
  • Premium stereo w/ MP3 auxiliary audio connections/amplifier, Bluetooth®, remote unit; speakers w/LED lights - bow (2), cockpit (4), & transom (2)
  • Triple helm seats with power slides, arm rests, and glass backs with grab rails
  • Triple sleigh seats with power slides, arm rests, and glass backs
  • Sleigh seat phone storage and USB charging station below the helm seats
  • Air conditioning – 10,000 BTU in console with (3) outlets at the helm and (3) outlets at the sleigh seats

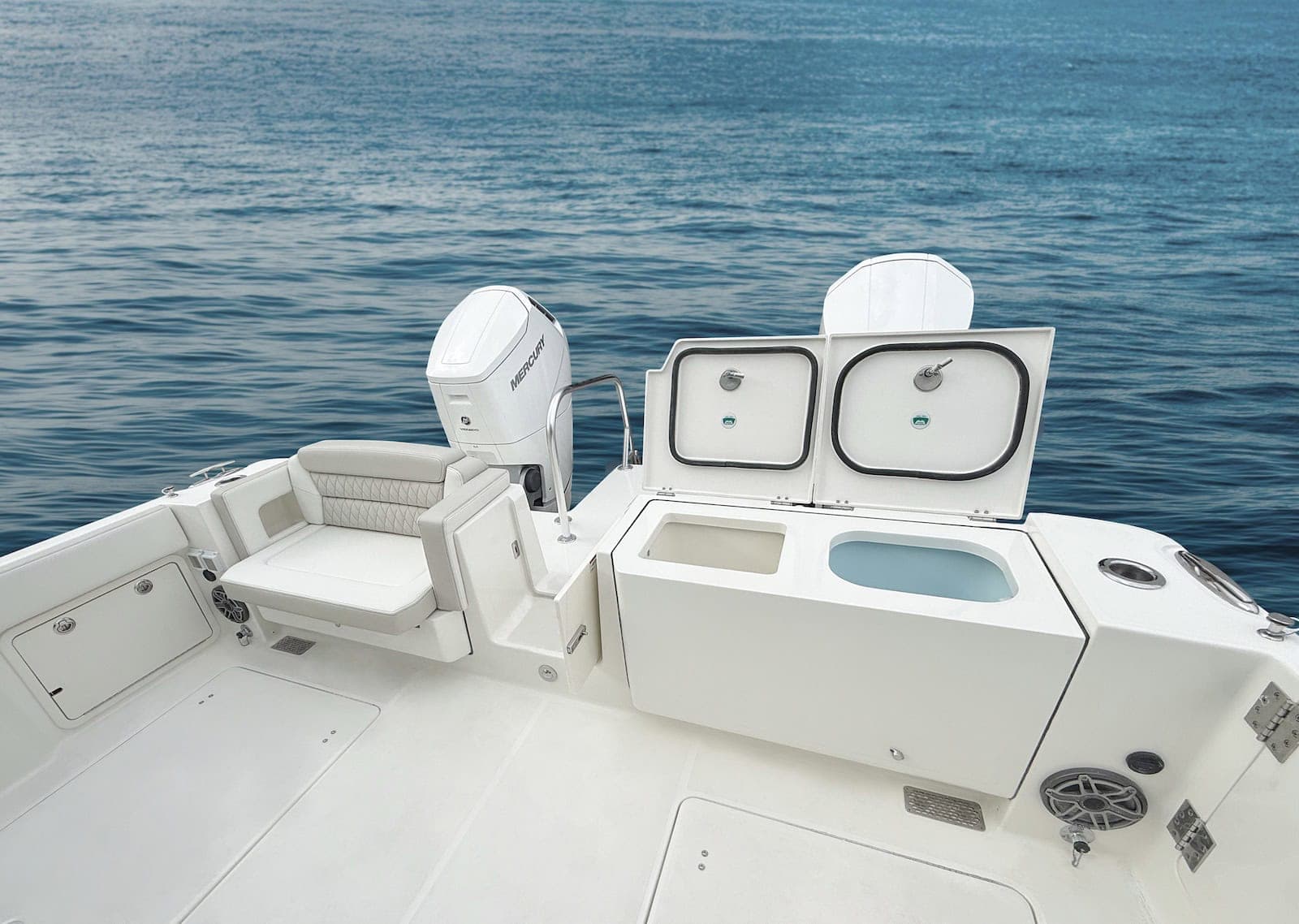

  • Mezzanine style seating aft of sleigh seats with insulated box underneath. Box has food racks and optional chiller plates.


  • In-deck 470-quart aft insulated fishboxes that drain overboard (port & starboard) (Starboard replaced by sea keeper)
  • Cockpit lights - blue LED
  • Drink holders - stainless steel (8)
  • Under gunwale removeable Frigid Rigid drink cooler (port and starboard)
  • Under gunwale entry step (port and starboard)
  • Stainless steel toe rails
  • Fresh and salt water wash down amidships (port and starboard)


  • 612-gallon fuel in two underdeck aluminum tanks with inspection access
  • Gunwale rod holders - (3) per side aft, (2) per side forward
  • Rod storage racks - horizontal (4)
  • Starboard mechanical room hatch access to batteries and Glendinning shore power reel (50-amp service)
  • Portside mechanical hatch with access to batteries, pumps, and optional generator
  • Port sea chest with acrylic top, tunnel side pick up
  • Port and starboard hull side drainage collection manifolds to minimize drain fittings
  • 3 Group 31 batteries, 2 Group 27 cranking batteries
  • In-line hot water heater (AC) with 60-gal water tank and water level indicator gauge
  • Port side boarding and dive door with ladder
  • Transom electric reel outlets
  • Transom 50-gal insulated livewell w/aquarium style window, light, full column distribution (port side)
  • Transom summer kitchen with propane grill (Starboard)
  • Centerline fiberglass transom door with lift gate and stainless trim, bolster, toe kick, and flush with inboard transom wall
  • Raw water washdown
  • Pull out hot and cold aft deck shower wand
  • Lighting - underwater blue LED (4)
  • Molded in extended swim platform integrates to aft deck



  • Removable upper station with quick release connectors and plug-in instrumentation
  • T-top opening hatch and ladder integrates to upper station pipework with steps through the mezzanine seat
  • Padded, upper station entry seat, closes to form helm seating
  • Helm fiberglass pod with steering wheel, 2-speakers, full-helm controls, and 17" instrumentation


  • Twin Yamaha XF425's (includes Pre Rig & Props)
  • Plumb aft portside fishbox as 100-gal livewell (replaces aft portside fishbox)
  • In-deck 108-gal aluminum fuel tanks port and starboard for total fuel of 828-gallons (replace aft fishboxes)
  • Woven Sea Grass cockpit flooring with rubber backing
  • Transom professional bait prep with fresh-water porcelain sink, cutting board, tackle storage, and insulated bait box with chiller plate
  • Transom 200-quart insulated fish box with optional chiller plates
  • Transom 75-gal fishtank livewell
  • Electronics package triple 17" or dual 24"


  • 9kW Fischer Panda generator and 30-gallon diesel fuel tank
  • Chiller plate options:  forward fish boxes, aft fish boxes, transom fish box
  • SeaKeeper 6 gyrostabilizer
  • Painted Engines, multiple hull color options, underside hardtop color options
  • Outriggers
  • Gunwale and vertical console rod holders
  • Curtain package
  • Forward Bow Shade
  • Aft Shade
